풍림철강

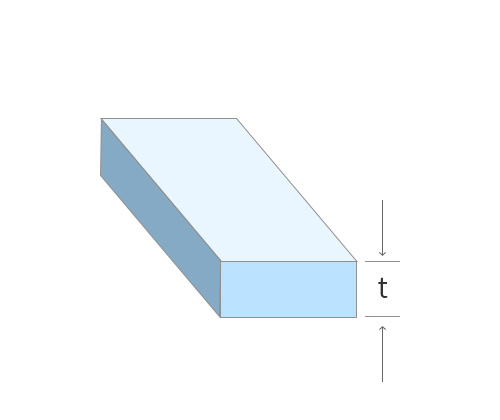

철판

규격 tf(mm)	3'x6'	4'x8'	4'x20'	5'x10'	5'x20'	6'x20'	8'x20'
두께 (mm)	914	1,219	1,219	1,524	1,524	1,829	2,438
두께 (mm)	1,829	2,438	6,096	3,048	6,096	6,096	6,096
2	21	37
2	24	42
2	26	47
2	30	54
3	33	58
3	34	61
3	35	63
3	39	70	175	109	219
3	42	75	187	117	233
4	53	93	233	146	292
5	59	105	262	164	328
5	66	117	292	182	365	438
6	79	140	350	219	438	525	700
7	92	163	408	255	510	613	817
8	105	187	467	292	583	700	733
9	118	210	525	328	656	788	1,050
10	131	233	583	365	729	875	1,167
11	144	257	642	401	802	963	1,283
12	158	280	700	438	875	1,050	1,400
13	171	303	758	474	947	1,137	1,516
14	184	327	817	510	1,021	1,225	1,633
15	197	350	875	547	1,094	1,313	1,751
16	210	373	933	583	1,167	1,400	1,866
17	223	396	991	620	1,239	1,487	1,983
18	236	420	1,050	656	1,313	1,575	2,100
19	249	443	1,109	693	1,386	1,664	2,217
20	263	467	1,167	729	1,459	1,751	2,333
21	276	490	1,225	765	1,531	1,838	2,450
22	289	513	1,283	802	1,604	1,926	2,566
23	302	537	1,342	839	1,678	2,014	2,683
24	315	560	1,400	875	1,750	2,101	2,800
25	328	583	1,458	911	1,823	2,188	2,916
26	341	607	1,517	948	1,896	2,276	3,033
27	354	630	1,575	985	1,969	2,364	3,150
28	368	653	1,633	1,021	2,042	2,451	3,266
29	381	676	1,691	1,057	2,114	2,538	3,383
30	394	700	1,750	1,091	2,188	2,626	3,500
31	407	723	1,809	1,131	2,261	2,714	3,617
32	420	747	1,867	1,167	2,334	2,801	3,733
33	433	770	1,925	1,203	2,406	2,888	3,850
34	446	793	1,983	1,240	2,480	2,976	3,966
35	459	817	2,042	1,276	2,553	3,064	4,084
36	473	840	2,100	1,313	2,625	3,151	4,199
37	486	863	2,158	1,349	2,698	3,238	4,316
38	499	887	2,217	1,386	2,771	3,326	4,433
39	512	910	2,275	1,422	2,845	3,414	4,550
40	525	933	2,333	1,459	2,917	3,501	4,666
41	538	956	2,391	1,495	2,900	3,588	4,783
42	551	980	2,450	1,531	3,063	3,676	4,900
43	564	1,003	2,509	1,568	3,136	3,764	4,106
44	578	1,027	2,567	1,604	3,209	3,851	5,133
45	591	1,050	2,625	1,641	3,281	3,938	5,249
46	604	1,073	2,683	1,677	3,355	4,026	5,366
47	617	1,097	2,742	1,714	3,428	4,114	5,483
48	630	1,120	2,800	1,750	3,500	4,201	5,600
49	643	1,143	2,858	1,786	3,573	4,288	5,715
50	656	1,167	2,917	1,823	3,646	4,376	5,833
51	669	1,190	2,975	1,860	3,720	4,464	5,950
52	683	1,213	3,033	1,896	3,792	4,551	6,066
53	696	1,236	3,091	1,932	3,865	4,638	6,183
54	709	1,260	3,150	1,969	3,938	4,726	6,300
55	722	1,283	3,209	2,006	4,011	4,815	6,417
56	735	1,306	3,267	2,042	4,084	4,902	6,533
57	748	1,330	3,325	2,078	4,156	4,989	6,650
58	761	1,353	3,383	2,115	4,230	5,077	6,767
59	774	1,377	3,442	2,152	4,303	5,165	6,883
60	788	1,400	3,500	2,188	4,376	5,252	6,999
61	801	1,423	3,558	2,224	4,448	5,339	7,117
62	814	1,446	3,617	2,261	4,521	5,427	7,233
63	827	1,470	3,675	2,297	4,595	5,515	7,350
64	840	1,493	3,733	2,334	4,667	5,602	7,467
65	853	1,516	3,791	2,370	4,740	5,689	7,582
70	919	1,633	4,083	2,552	5,105	6,127	8,166
75	985	1,750	4,325	2,735	5,470	6,565	8,750

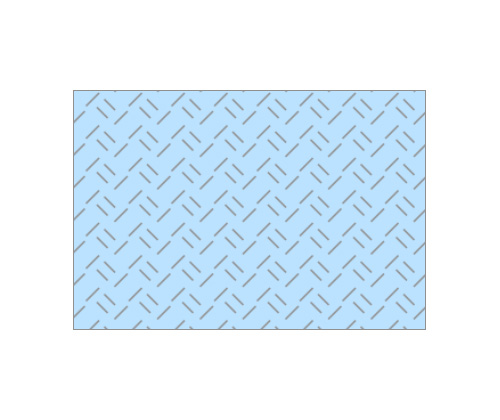

무늬강판

규격 tf(mm)	3'x6'	4'x8'	단위중량 Unit Weight (kg/m)
두께 (mm)	914	1,219
두께 (mm)	1,829	2,438
3.2	44.8	79.8	26.79
4.5	61.9	110	37
6	81.6	145	48.77
*8.0	108	-	64.47
